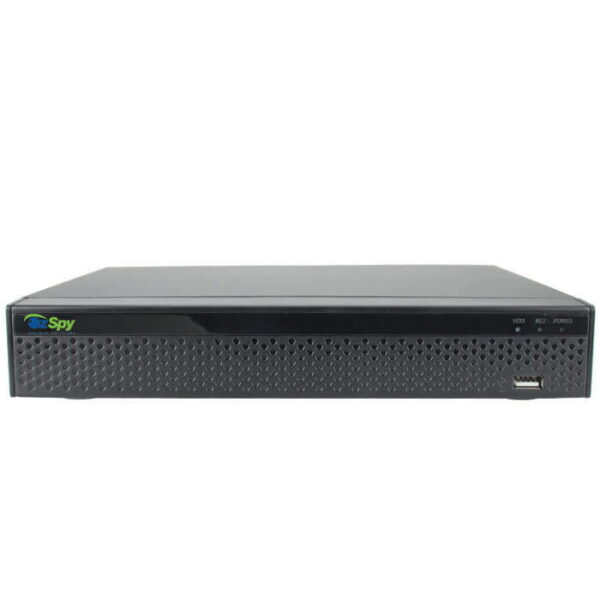

64ch 12MP CCTV NVR 300MBS and P2P Remote View

64ch 12MP CCTV NVR 300MBS and P2P Remote View

This NVR boasts great quality, a three year warranty, up to 12MP recording. Connect this with you favourite OzSpy IP camera and you have a great system.

Being a non PoE, cameras need power locally or use a PoE switch.

Did you know that OzSpy recorders have a website login, this means you can check your cameras from anywhere you have a web browser. You can access our systems directly, via laptop, PC, mobile phone, and tablet giving our recorders the most options for remote view, and it’s simple to set up.

NVR Features

12MP resolution
Motion detection
Remote view
Audio
Onvif for compatibility with most cameras
Non PoE
IP
1 year warranty





Works with:

OzSpy IP Cameras

HikVision Cameras

Dahua Cameras

Onvif Cameras



Specifications

System

Main Processor    ARM Cortex A17 Quad-core Processor
Operating System    Embedded LINUX

Video

Input    64CH (4096×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc)
Output    1 VGA, 2 HDMI

Audio

Input    1 Port RCA
Output    1 Port RCA(Linear, 1kΩ)
Audio Bit Rate    64kbps
Audio Compression standard    G.711

Alarm

Sensor Input    16
Output    4
Motion Detection    64 Channel, MD Zones: 396 (22 × 18)
Trigger Events    Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, alarm output

Display

HDMI1    12mp, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI2    1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA    1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split    64CHxD1/36CHxD1/25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom    YES
OSD    Camera Title, Time, Video Loss, Recording, Motion Detection

Recording

Video Compression    H.264/H.265
Resolution    4k(4096×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280×960),720P(1280×720),D1 (720×576/720×480)
Record Rate    PAL :4k@30×25fp,5MP@50×25fp,4MP@64x25fp,3MP@64×25fp,1080P@64×25fp, 960P@64×25fp,720P@64×25fp, D1@64×25fp
NTSC: 4k@30×30fp,5MP@50×30fp,4MP@64×30fp,3MP@64×30fp,1080P@64×30fp, 960P@64×30fp, 720P@64×30fp, D1@64×30fp
Record Mode    Manual\Timer\Motion Detection

Playback & Backup

Local Sync Playback    4CH 4K@30fps, 6CH 5MP@30fps, 8CH 4MP@30fps, 10CH 3M@30fps, 16CH 1080P@30fps, 16CH 960P@30fps, 16CH 720P@30fps
Decode Capability    4CH 4K(3840×2160)@30fps
Remote Sync Playback    YES
Search Mode    ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions    Play, Pause, Stop,  Fast Play, Digital Zoom
Backup Mode    USB Device/Network

Network

Interface    2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Incoming Bandwidth    300MB
Network Functions    HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, DDNS, FTP, Alarm Server, IP Search, P2P
Onvif Version    Support Onvif 2.4
Web Browser    IE8-11, Google Chrome (lower than Ver44), Firefox (lower than Ver53)
CMS Software    Support  Windows 7/ Windows 8/Windows 10
Cloud Support(P2P)    Yes
Smart Phone    iPhone, iPad, Android, Android Pad
POE    No
WIFI    No

Storage

Interface Type    8 SATA Interface
Capacity    Up to 48TB capacity
eSATA    1 eSATA interface

General

Language    Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek
USB Interface    2 USB 2.0 Interfaces ,1 USB 3.0 Interface
RS485    1 Port, for PTZ Control
Power Supply    100 to 240 VAC, 50 to 60 Hz
Working Environment    -10~55℃/10~90%
Dimension(W×D×H)    2U, 440mm×450mm×95mm
Weight    9.8Kg（without HDD）



NVR Recorder Manual

➲Download Manual Here
