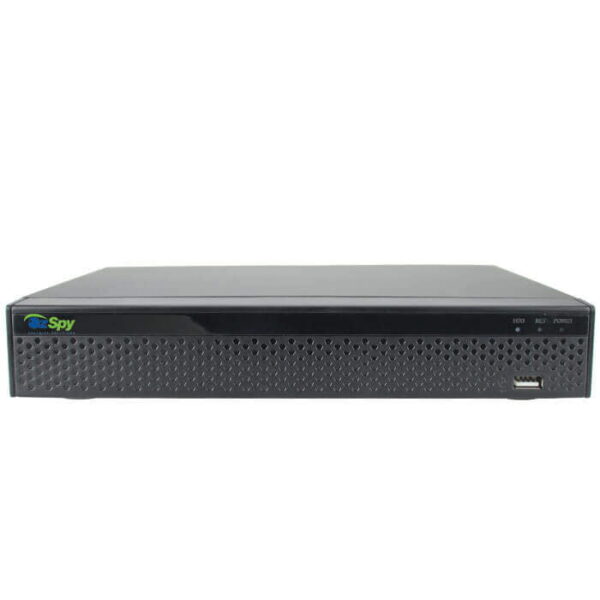

8MP 4K UHD 4ch XVR CCTV Video Recorder


This 8MP 4K UHD 4ch XVR CCTV  Video Recorder with Remote View delivers exceptional compatibility, value and performance

In stock

8MP 4K UHD 4ch XVR CCTV TVI Video Recorder

Got an existing system and the old DVR has failed, then this is for you. These are fantastic as replacements as they are compatible with everything we have ever come across. They are 4k (8mp UHD) output, remote view via the internet, silent, and just work very well.

These DVRs are so clever that they can even scan your network and pick up any IP cameras you may have and allow you to add them, sometimes even finding cameras you didn’t know were there.

The benefit of using XVR Hybrid technology is that you can mix any technology, any resolution, on any channel making them perfect for a phased in upgrade of an existing system or a new system that is compatible with everything.

Did you know that OzSpy recorders have a website login, this means you can check your cameras from anywhere you have a web browser. You can access our systems directly, via laptop, PC, mobile phone, and tablet giving our recorders the most options for remote view, and it’s simple to set up.

What makes this XVR great?

  • Works with any brand of cameras (that we have tested)
  • Works with any technology cameras AHD, CVI, TVI, CVBS(Analogue)
  • Hybrid, any mix IP cameras and Analogue HD cameras
  • Has a super reliable phone app that’s easy to use, with live view, playback and push
  • Accepts cameras up to 8MP/4K and as low as old analogue
  • Outputs up to 8MP/4K for an amazing image
  • Smart design which doesn’t need a fan so these are silent
  • Very easy to use
  • Three year warranty
  • 12v DC



Main Processor HI3521A
Operating System Embedded LINUX
Input “Anolog: 4*(TVI: 8M; AHD/TVI: 4M; AHD/TVI: 3M; HD: 1080P/720P; Analog: 960H)
Anolog+Network:2*Anolog+7*network(Max 8MP)
Network: 16*network(Max 8MP)(Total incoming bandwidth =80M)”
Input 4CH BNC
Signal Type Anolog/AHD/CVI/TVI 2.0/TVI 3.0/Network
Output 1 HDMI,1 VGA, 1CVBS
Input 4Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Sensor Input NO
Output NO
Motion Detection 4 Channel(max 16 Channel in pure network mode)
Trigger Events Recording, Alarm, Email, Screen tips, Buzzer
Email Alarm Send Image to The Designated E-mail
Interface RS485
Protocol Pelco-D, Pelco-P
Baud Rate 110~921600
Address 0~255
VGA Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080
HDMI Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080, 2048×1536
Display Split 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel
Privacy Masking 1 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Video Compression H.264
Audio Compression G711A
Resolution 8MP 5MP(2592×1944); 4MP(2560×1440), 3MP(2048×1536); 1080P(1920×1080); 720P(1280×720); 960H(P:960×576/N:960×480)
Video Quality worst/worse/ordinary/well/best
Record Rate “PAL:8MP, 5MP(2592×1944 4*12fps), 4MP(2560×1440 4*15fps), 3MP(2048×1536 4*18fps); 1080P(1920×1080 4*25fps), 720P(1280×720 4*25fps), 960H(960×576 4*25fps)
NTSC:8MP, 5MP(2592×1944 4*12fps), 4MP(2560×1440 4*15fps), 3MP(2048×1536 4*18fps); 1080P(1920×1080 4*30fps), 720P(1280×720 4*30fps), 960H(960×480 4*30fps)”
Record Mode Manual\Timer\Motion Detection\alarm
Playback & Backup
Sync Playback “Pure Anolog:2CH 1080P@30fps, 4 CH 720P@30fps
Mixture Mode: 3CH 1080P@30fps
Pure Network: 4CH 1080P@30fps, 2CH 5MP, 1CH 8MP”
Remote Playback 4 Channel / 1 Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection
Playback Functions Play, Pause, Stop, Fast play, Rewind
Smart Phone Playback 1 Channel
Backup Mode USB Device/Network
Interface 1 RJ45 10M/100 Adaptive Ethernet Interface
DDNS Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES
Web Browser IE8-11, Google Chrome (IE Tab), Firefox (IE Tab)
CMS Software Support Windows 7/Windows 8
Extra Stream D1/CIF(1~25fps)
Smart Phone iPhone, ipad, Android ,Android pad
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity 2.5″/3.5″ SATA, Up to 6TB
Language “Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek”
UTC Control YES
USB Interface 2 USB 2.0 Interfaces
Power consumption DC 12V =6W (Without Hard Disk)
Working Environment -10~55?/10~90%
Dimension (W×D×H) 220*219*50(mm)
Weight 2.0kg (Without HDD)



XVR Hybrid CCTV Recorder Manual

Download Manual Here


Weight 1.103 kg
Dimensions 33 × 28.5 × 7.5 cm
Remote View


App Name(s)



Android, iPhone, Windows XP/ Vista or Above / Win 7/8/10/11, Mac os


Up to 6TB HDD



Powered By

12v DC

Record Modes

Motion Detection, Still Shot, Video

Warranty Period

36 Months Standard Warranty
